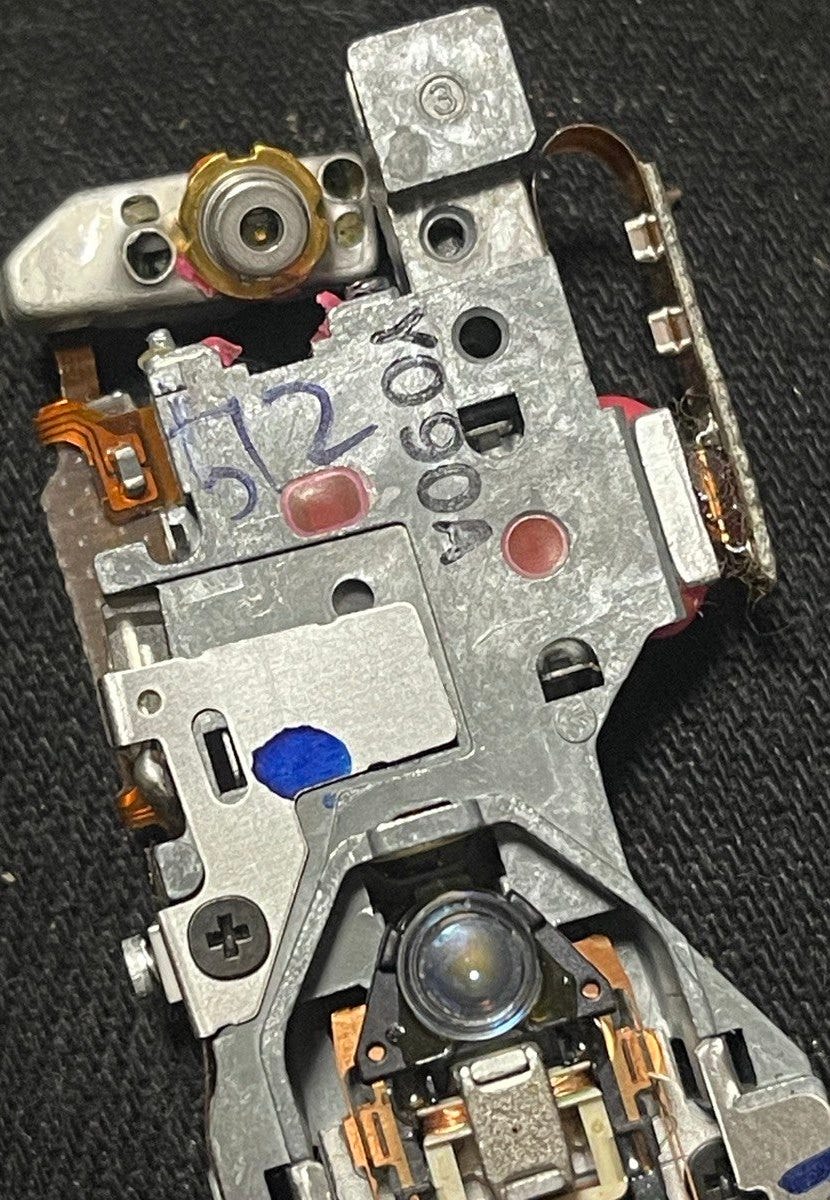

So, on to our first “thing”, the optical sled from a minidisc player:

I’ve chosen to start with this “thing” because I have a number of other minidisc related posts coming, and this will be a useful reference point for future posts.

This particular sled is from a Victor MX-S77WMD, a compact HiFi system. While there are lots of great videos on the minidisc ecosystem. There are relatively few on the optical approach used. And it took some searching and fiddling to figure out how this head works.

Minidiscs in many ways feel like an evolution of CD players. And indeed, the laser in this unit looks very much like a Sanyo 780nm CD player laser diode. This is likely the part that failed:

Pre-recorded minidiscs, are more or less, mini-CDs. They encoded data on a pre-mastered disc using almost exactly the same physical format as a CD. Recordable minidiscs however were almost completely different. These are magneto-optical discs, which use the Kerr effect to record data on a disc.

Pre-mastered minidiscs were hugely unpopular, until recently I’ve never even seen one, but even so, all minidisc players had to include the ability to play these two quite different formats.

Magneto-optical drives use a laser to heat up a small spot on the disc beyond its Curie temperature, and then use an electromagnetic to polarize this spot on the disc. Data is read out using the Kerr effect. When a laser is reflected by the magnetically polarized surface, it changes the lights polarization. You can read about this approach in detail elsewhere.

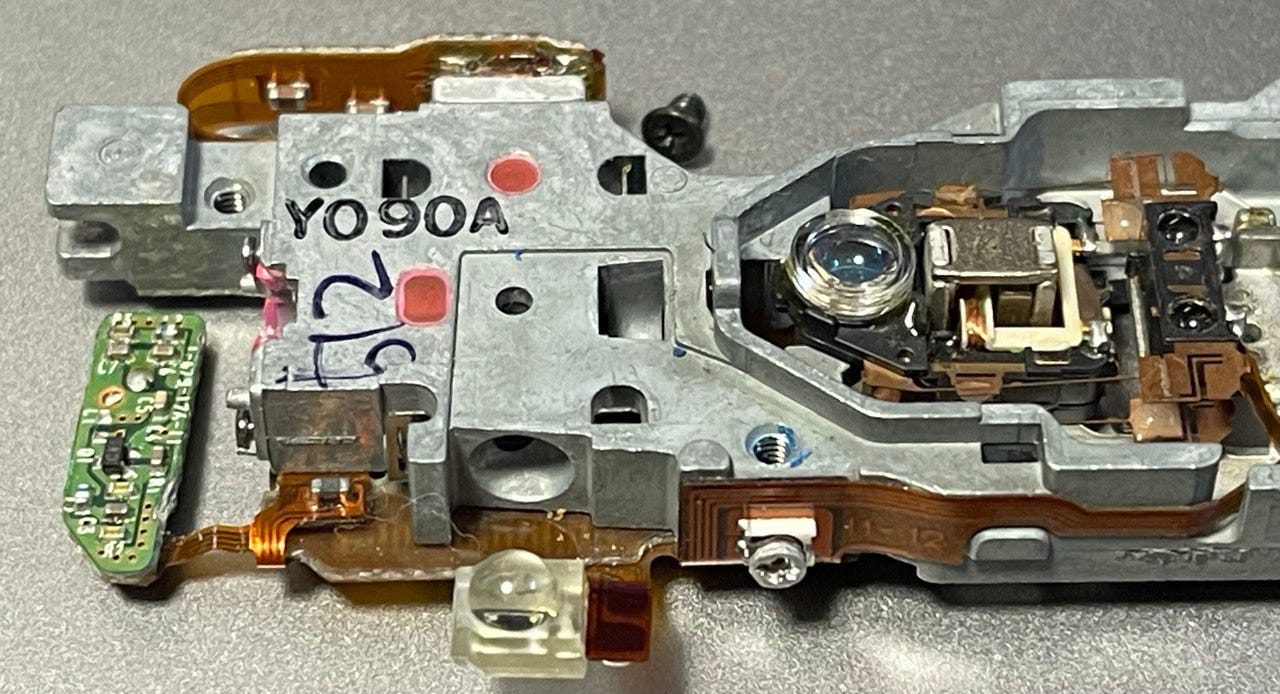

This is all a round-about way of saying, a minidisc player needs a way to determine the polarization of light reflected off the disc in addition to the detecting the pits/lands of a “CD-like” surface. With this in mind, let’s pull apart the head and identify the optical components:

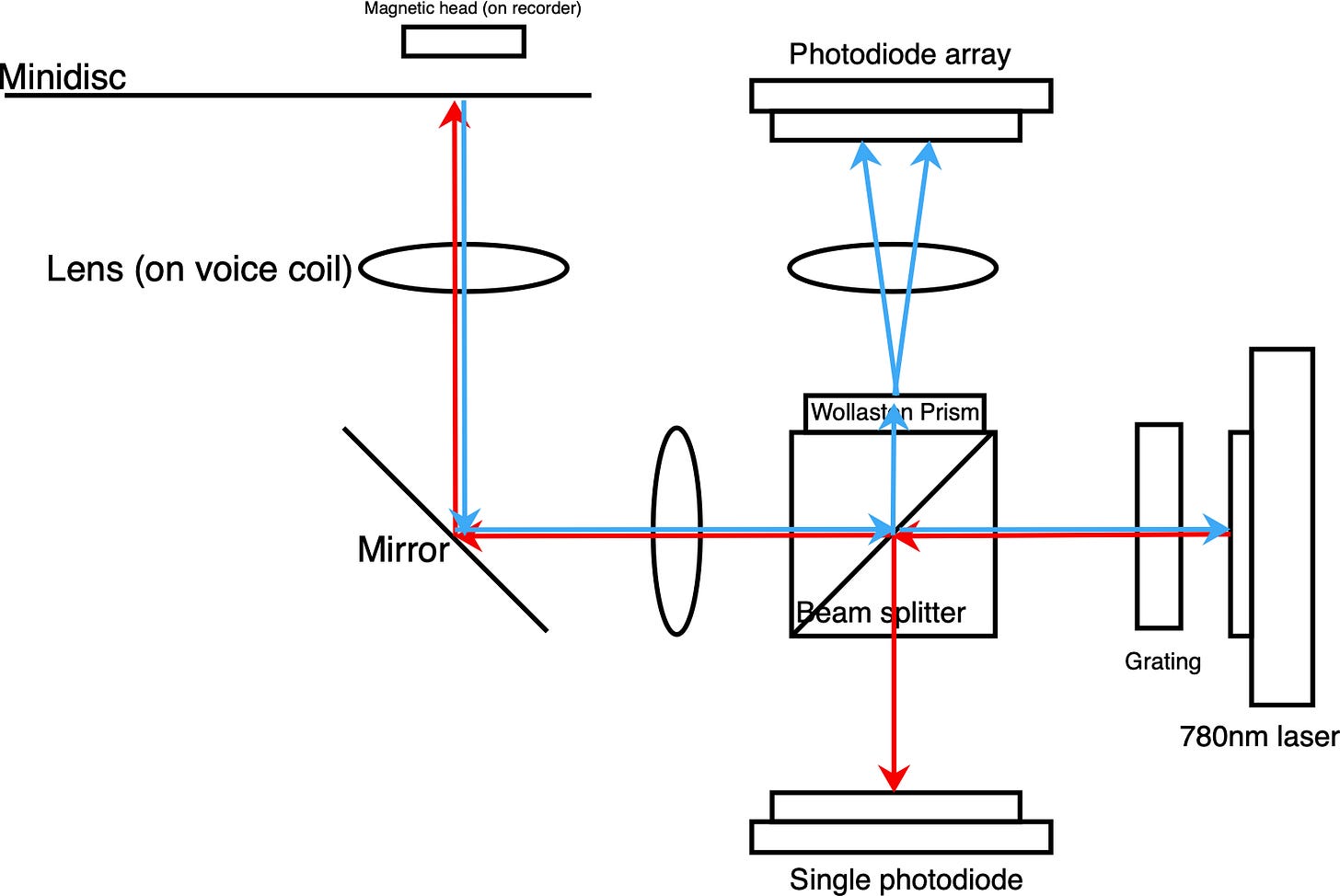

Everything is all pretty much jammed together, but drawing out an optical diagram makes things a little clearer:

There are two interesting optical elements here, the first is the grating. This gives us a main “peak” and two dominant “side” peaks. This is used to keep the laser aligned to pre-printed grooves on the disc. I removed the grating and demonstrate this in the video below:

The second is the Wollaston prism this is a tiny element stuck to the side of the regular 50/50 beam splitter. A Wollaston cube is a kind of a polarizing beam splitter laser light goes in and is reflected based on its polarization. I pulled this out too and had a quick play with it:

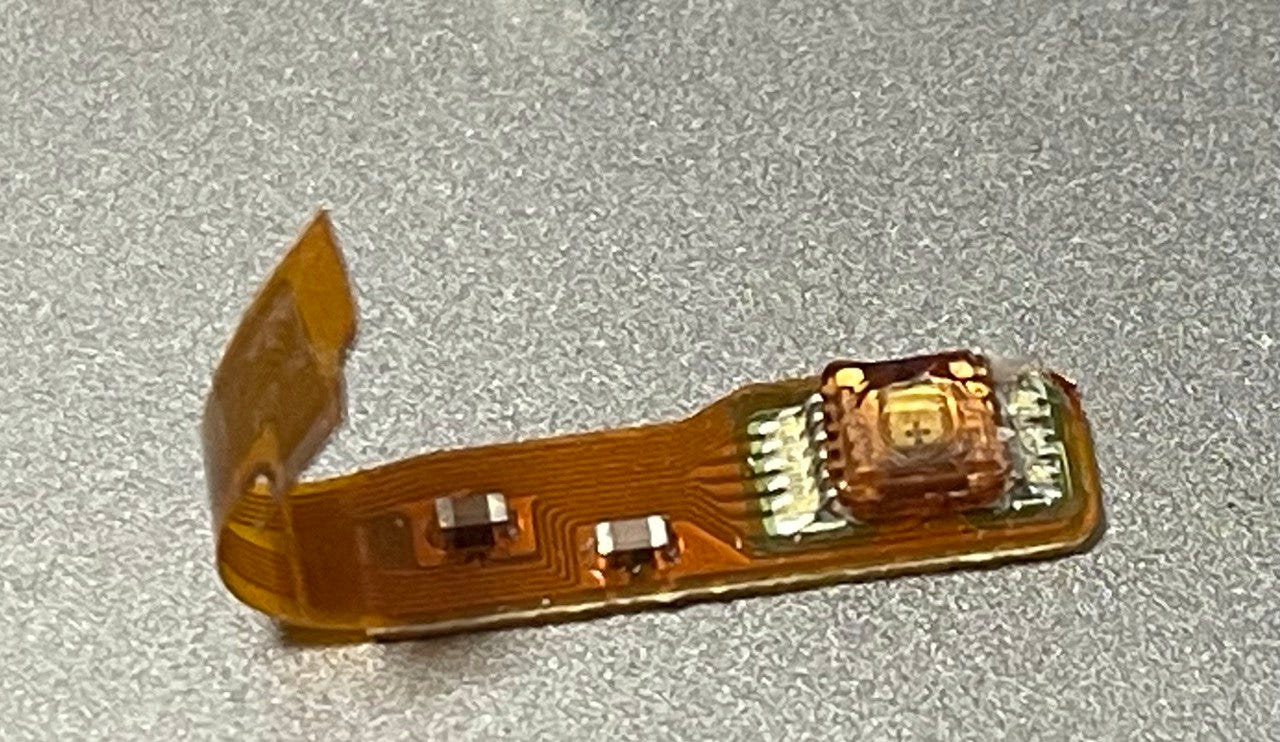

As shown above, you can see a single laser beam being split into a pair of spots one each for horizontal and vertically polarized components. These then need to be detected, which much like a CD player, uses a small photodiode array:

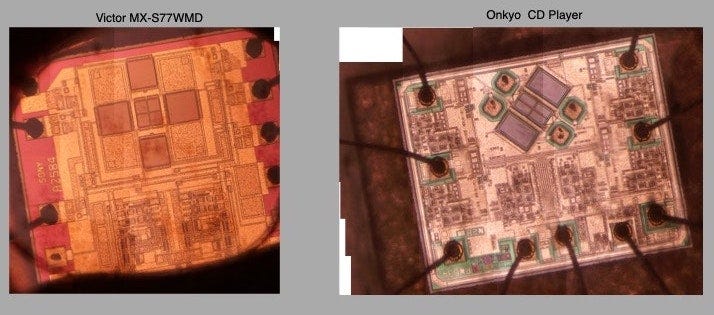

I stuck this under a (very much hacked together) epi-illuminated microscope and hand stitched the following image together:

I assume the outer four photodiodes are used to align the diffraction peaks that sit on the alignment grooves. But why you need four of them is less clear to me. Looking at a typical CD player photodiode array, this isn’t the case:

I imagine the polarized beams can be detected by the central quadrant diode as a shift to either the left or right.

In addition to the photodiode array, the optical sled also contains a single photodiode. The purpose of this is less clear, but I suspect it’s used to monitor/compensate for the laser diode output power, looking at the optical layout, that’s all it really can do as it just takes the output of laser and nothing else.

This Y090A sled was probably made by Sony, and it seems like the most basic approach to building a minidisc read head. In future posts I’ll be looking at other optical architectures and both pre-mastered and recordable minidiscs in more detail. But that’s all for now.
