An HDMI to USBC Display Port Converter

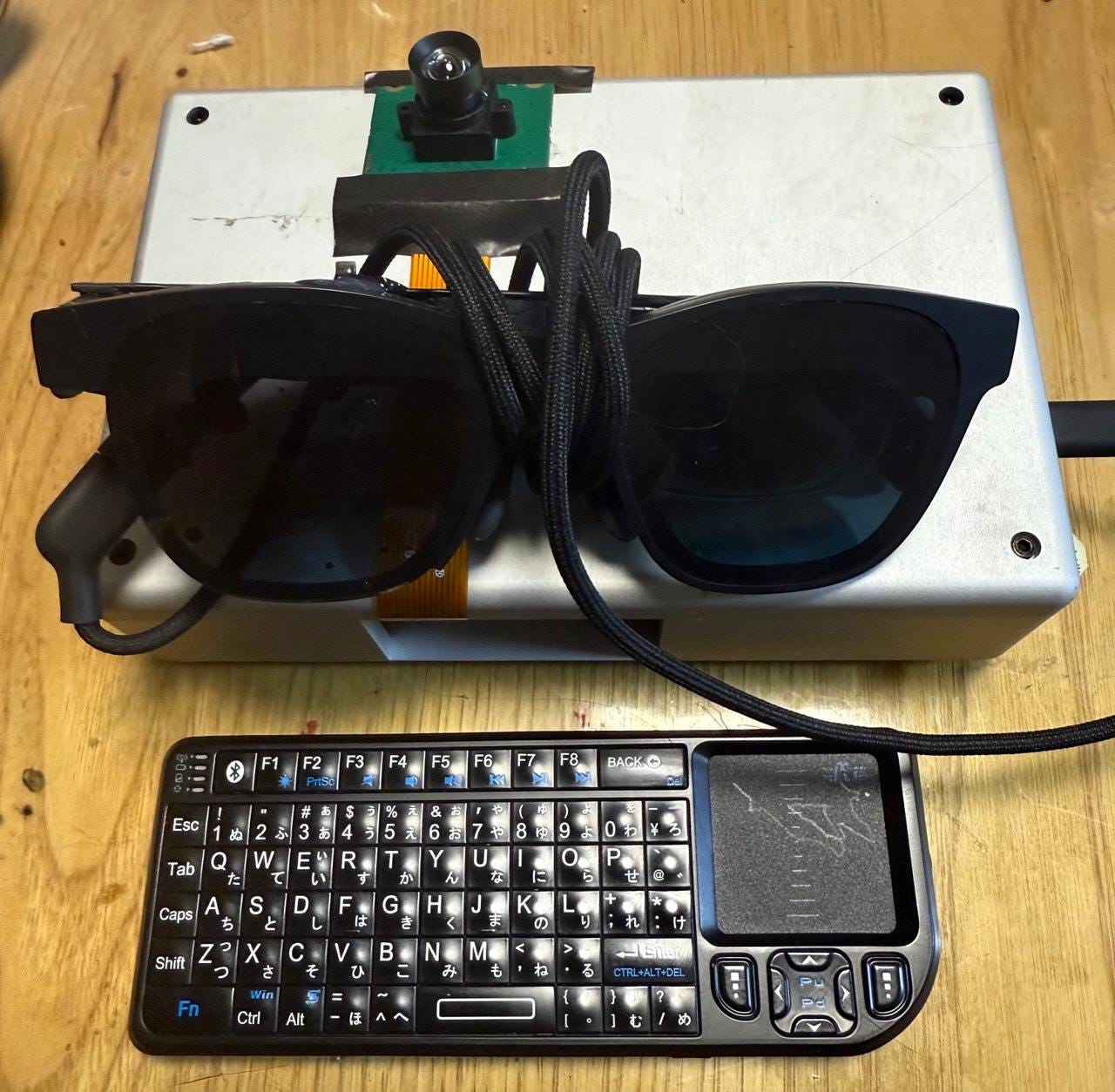

I needed a HDMI to USBC Display port converter for a project where I’m connecting some AR glasses (which take a USBC display port input) to a Raspberry Pi. The interim project looks like this:
And let’s me walk around like some kind of bizarre AR-Cyborg-SnowCrashGargoyle.
As I may want to integrate the HDMI-USBC DisplayPort electronics into a PCB at some point I decided to take one apart and see what chips is uses. Turns out it’s based around an LT6711A, and there’s at least one open source Kicad design using the chip!

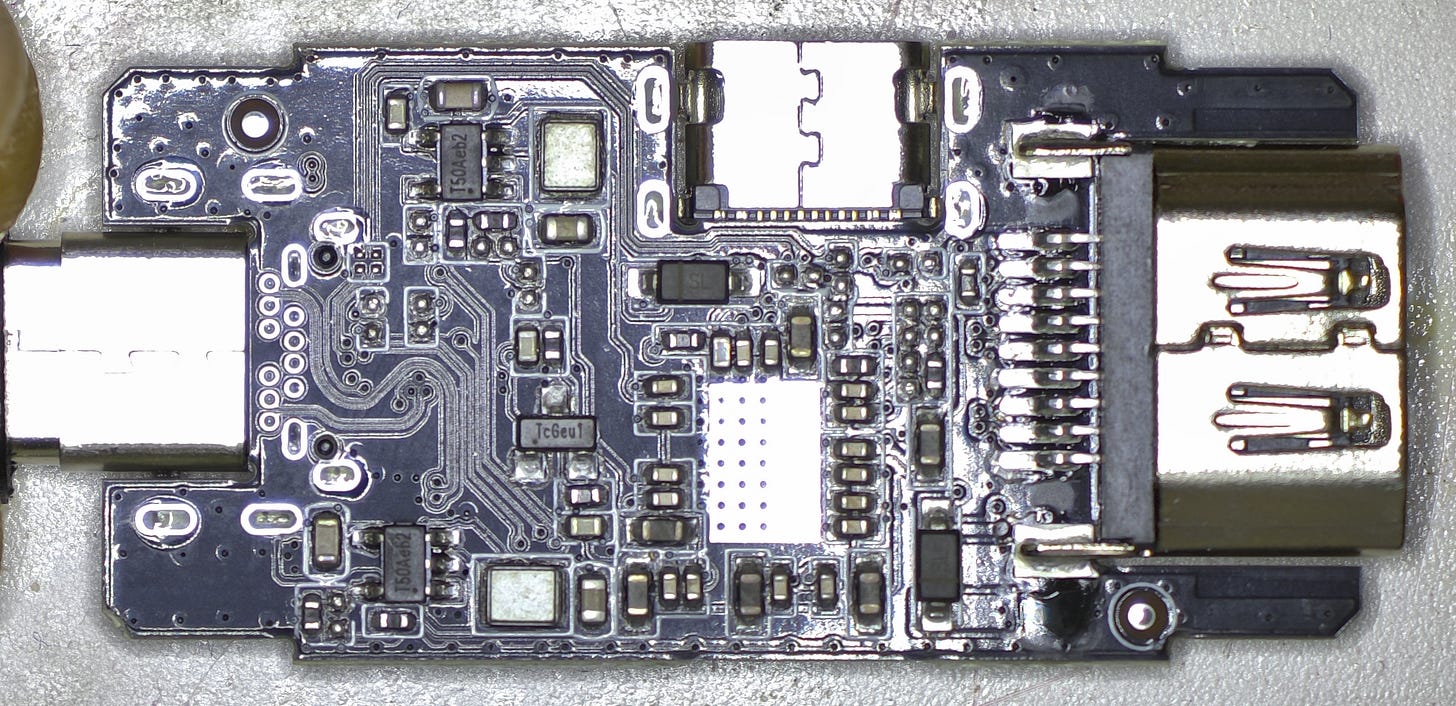

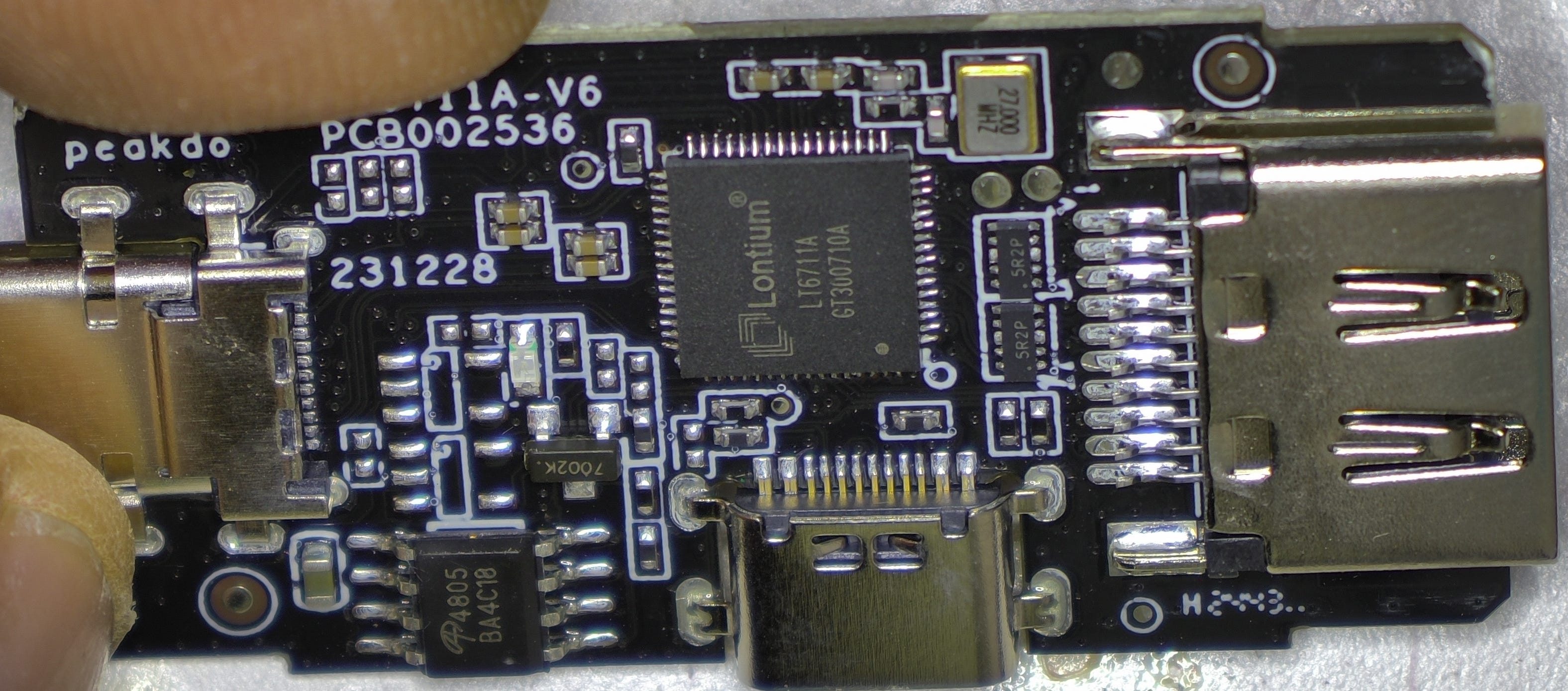

Pics of the adapter PCB below!
Originally came in a package that looks like this:
